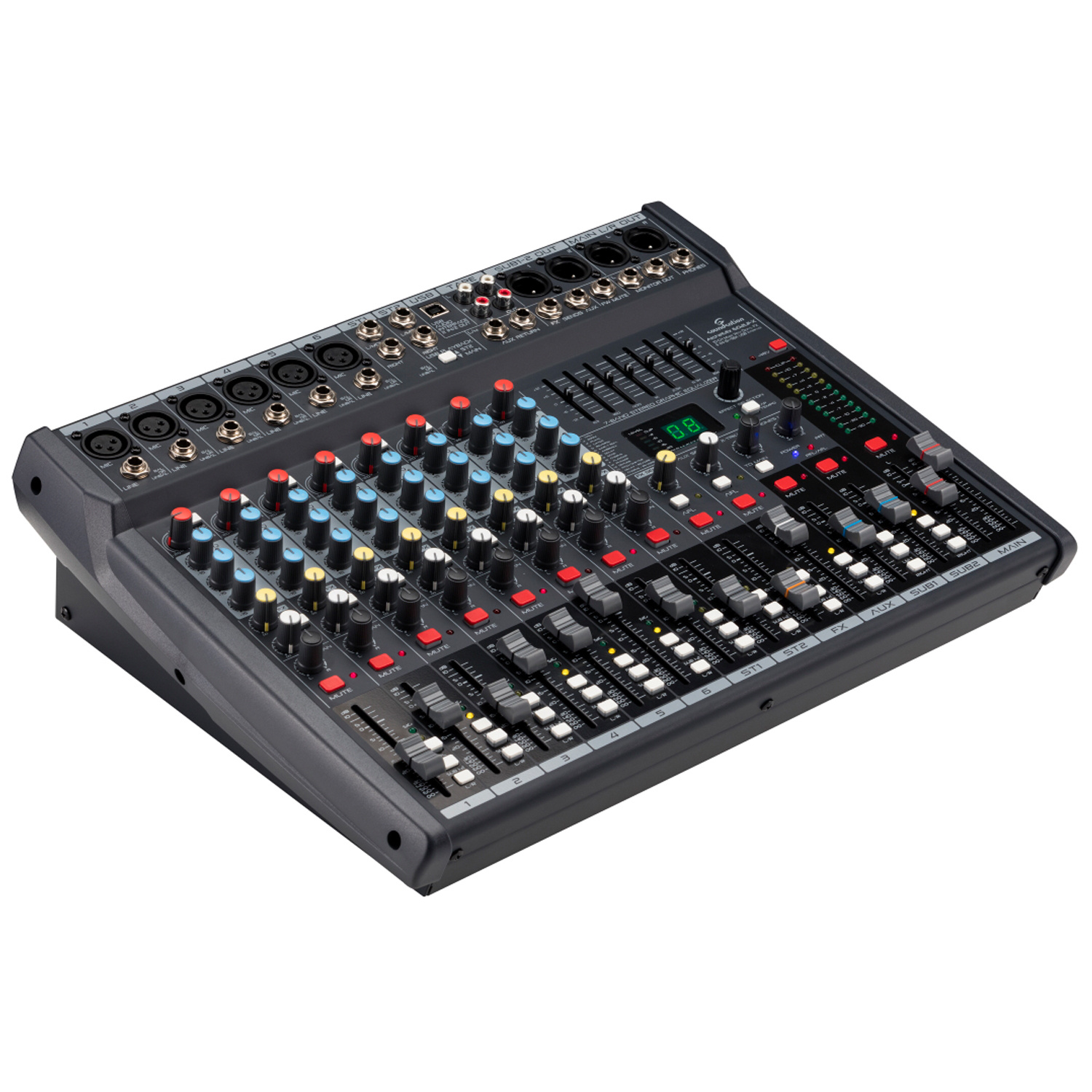

ALCHEMIX 602UFX

ALCHEMIX 602UFX. 10 Channel Mixer, 24-bit Digital Multi-Effect, USB Stereo In/Out Soundcard.

Mixer från Soundsation med 10 kanaler, 2-in/2-ut USB-inspelningsmöjlighet, 7-bands EQ samt inbygga effekter.

Specifikationer:
Configuration: 6 Mic/Line + 2 Stereo
Nominal Gain (Mic/Line/Stereo Line): 60dB, 40dB, 20dB
Max Gain (Mic/Line/Stereo Line): 80dB, 60dB, 40dB
Mic Input Sensitivity (Gain Min/Gain Max): -10dBu/-60dBu
Line Input Sensitivity (Gain Min/Gain Max): +10dBu/-40dBu
Stereo Line Input Sensitivity (Gain Min/Gain Max): +10dBu/-20dBu
Aux Return Input Sensitivity: 0dBu / 2-Track Input Sensitivity: -2dBu
Mic/Line Max Input Level: +24dB
Stereo Line/Aux/2-Track Max Input Level: +20dB
Mic Input Impedance: 2kohm Balanced
Line/Aux Input Impedance: 20kohm (Balanced)/10kohm (Unbalanced)
Tape Record Inputs Impedance: 10kohm Balanced
Main/Group/Monitor/Aux Send Output Levels: 0dBu (0.775V RMS) Nominal/ +22dBu (10V RMS) Max
Record Out Output Levels: -2dB (600mv RMS)/ +22dBu (10V RMS) Max
Main/Group/Monitor/Aux Send Output Impedance: 75ohm
Record Output Impedance: 1kohm
Phones Output Impedance: 33ohm min
Frequency Response: 20Hz to 20kHz (+0/-2dB)
Total Harmonic Distortion / Signal-Noise Ratio<0.006% / < -85dB
Mono MIC (Treble/Mid/Bass): ±15dB (12kHz HF / 2.5 kHz MF/60Hz LF)
Stereo Line (Treble/Mid/Bass): ±15dB (12kHz HF / 2.5 KHz MF/80Hz LF)
Effect: 16 Effects, 24-bit Sigma-Delta, 256-times oversampling, 48kHz sampling rate
USB I/O Soundcard: Up to 24-bit/96kHz Stereo Input/Output Streaming, USB Class-2.0 compliant
Phantom Power: +48V
Power Supply: 150V-240V~50Hz, 15W max
Size (WxDxH): 376 x 316.5 x 134 mm
Carton Size (WxDxH): 455 x 165 x 392 mm
Net Weight: 5.0 kg
Gross Weight: 6.0 kg
