DP102

X2N® DP102

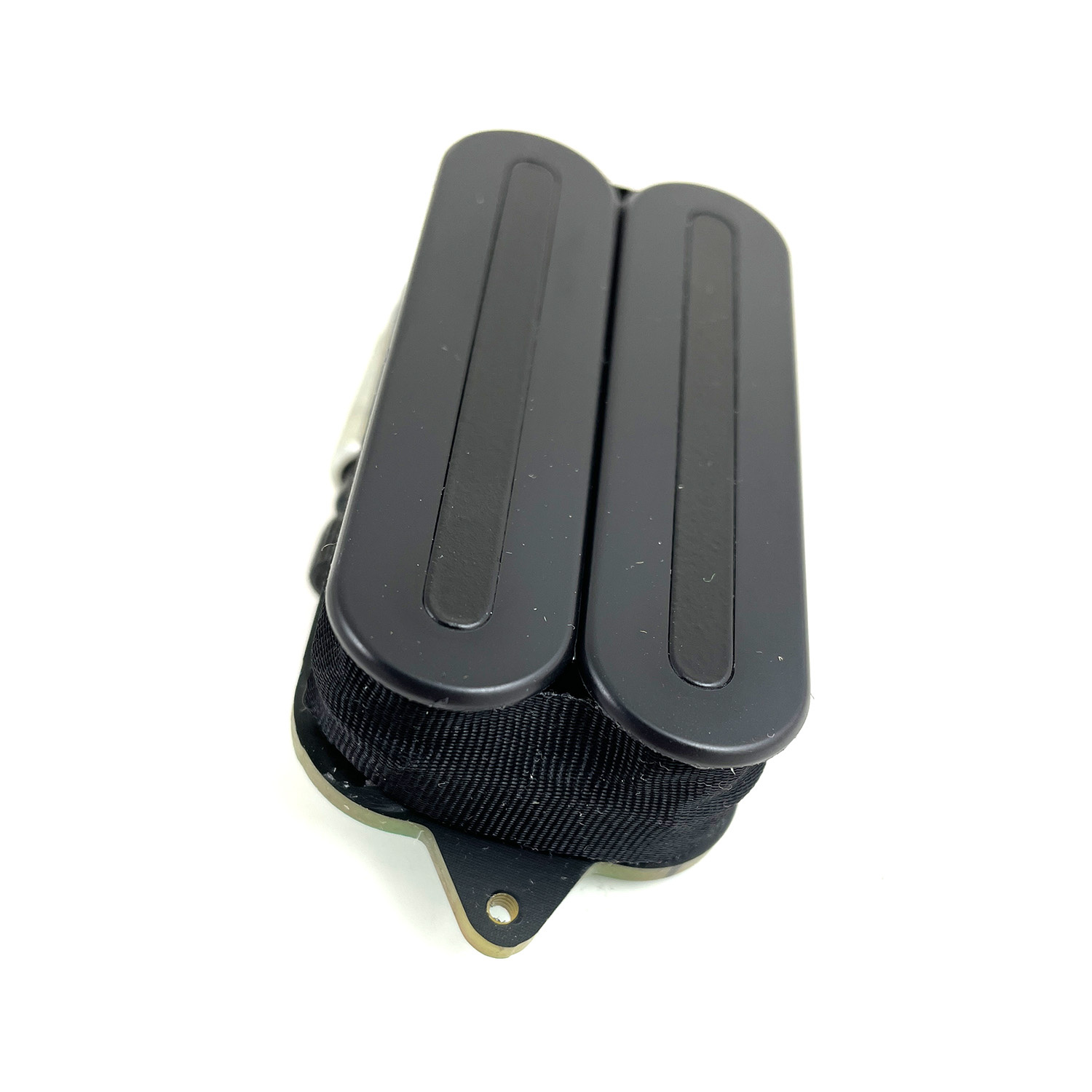

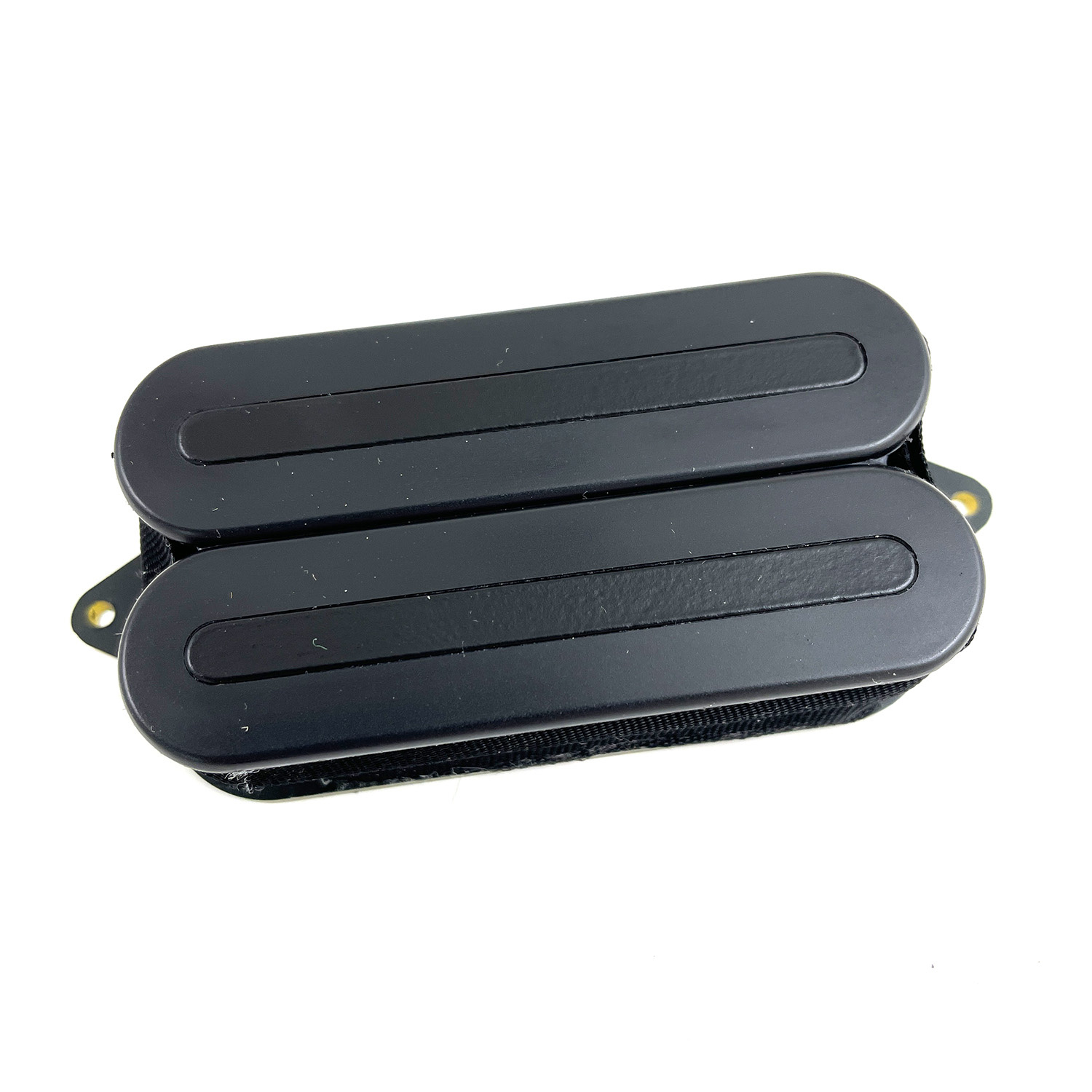

The X2N® is a “take-no-prisoners, in-your-face” humbucker. Twin, wide-bar pole pieces give the X2N®a nasty, dangerous look — and rightly so. Our highest gain pickup was created to push tube amps into total overdrive. Put one in the bridge position for a powerful jolt to the voltage the amp sees from your guitar. The result is a sound that can only be described as blistering. The magnetic field of the X2N® is very powerful and focused. It captures the character of whichever guitar it’s in. If your guitar is warm sounding, the X2N® will act like a sledgehammer. A bright-sounding guitar will gointo total scream mode. And the X2N® still has versatility: single-coil and series-parallel modes are particularly effective, because the X2N® pickup’s power gives these sounds more authority than ispossible with weaker humbuckers.

Recommended For

Bridge position in solid body guitars.

Tech Talk

The X2N® works in any situation where maximum power and overdrive is required. The dual blade pole pieces create a very even, balanced sound. The X2N® works best in combination with higher-output pickups. It can also combine well with the Fast Track 1™, The Chopper™, and Pro Track™. The split option is very effective, because a single X2N® coil has similar performance parameters to many Strat®-type pickups.

Specs

Wiring: 4 Conductor
Magnet: Ceramic

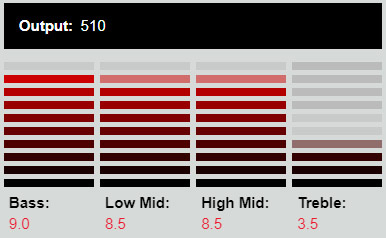

Output mV: 510
DC Resistance: 15.83 Kohm
Year of Introduction: 1979
Patent: n/a
