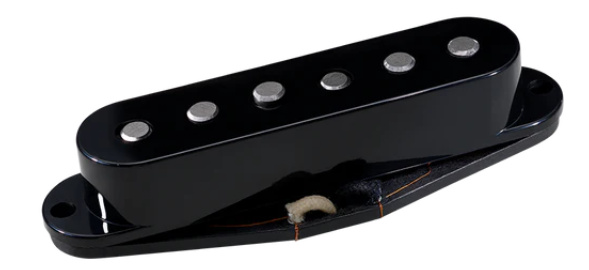

DP175SBK

DP175SBK. True Velvet™, Middle pickup.

It's not difficult to make a vintage single-coil pickup that's clean and bright, but not so easy if you also want the high strings to sound sweet above the 12th fret. The True Velvet™ was designed to make this happen by tuning the coil to a frequency range that’s bright but not thin. We combined this with a magnet stagger specifically designed to enhance string balance, which produces great clarity, even with full chords. The True Velvet™ Neck and Middle models have the same specs except for reverse polarity on the middle pickup for hum cancellation in the 2 and 4 positions. The True Velvet™ Middle comes standard with hand-ground magnets and vintage cloth covered wire.

Recommended For Middle Position.

Tech Talk
The True Velvet™ is a further development of our Blue Velvet™ line. We've re-tuned the basic frequency response to hone in on the strongest aspects of vintage single-coil tone. The best vintage single-coils emphasized a x93sweet spotx94 where the sound is bright but not piercing. The True Velvet™ is tuned to this spot, making it equally effective for many playing styles, from the clarity of country music to the grit of Texas blues. For technically-minded players, reverse polarity on our true single-coil StratxAE replacements is south up.

Specs. DP175SBK:
Finish: Black.
Pole pieces: Nickel.
Wiring: 2 Conductor.
Magnet: Alnico 5.
Output mV: 130.
DC Resistance: 6.21 Kohm.
Year of Introduction: 2008.
Patent: n/a.

Tone Guide
Output: 130

Bass: 3.5

Mid: 4.5

Treble: 8.5
