DP192

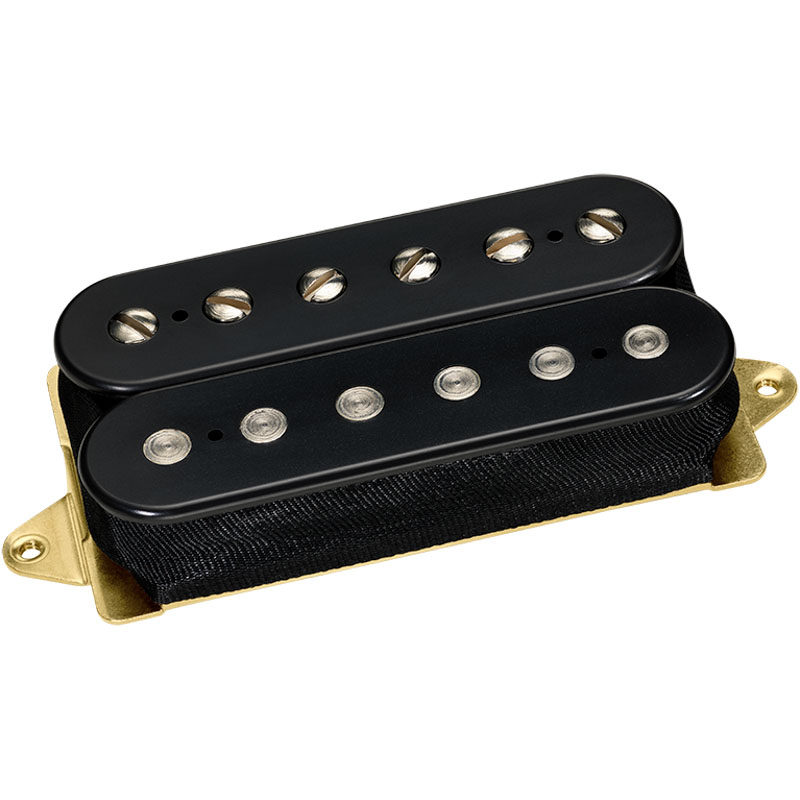

Air Zone™ DP192

The best way to describe the Air Zone™ is to say it’s a vintage version of The Tone Zone®. It’s gotthe same low string-pull as our other Airbuckers™ for singing sustain, plus it has the big bass response and cool harmonics of The Tone Zone®, with extra sensitivity and control. It’s a great match for very hot amps, allowing the player to take full advantage of massive preamp gain without turning the sound to mud or fuzzy noise. It’s also a great neck pickup for jazz players who need to get the hollow-body arch top sound from a solid body, and it offers exceptionally good split and series-parallel capability.

Recommended For

Bridge position primarily (see Tech Talk for neck position application) in solid body and semi-hollow body guitars.

Tech Talk

Ultra-fat PAF® sound with more output. The dynamic range from soft to hard picking is very wide, and the combination of dual-resonance coils with the Airbucker™ magnetic field allows sustained notes to hang on to harmonic overtones longer, instead of becoming muddy as they fade. Will also work as avery warm, full neck pickup for jazz sound, and combine with The Tone Zone®, Super Distortion® and Super 3™ in bridge position.

Specs

Wiring: 4 Conductor
Magnet: Alnico 5

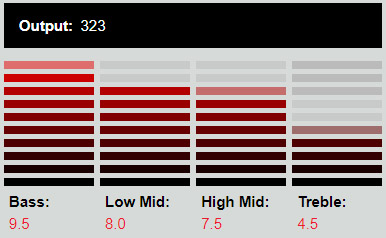

Output mV: 323
DC Resistance: 17.49 Kohm
Year of Introduction: 1995
Patent: 4,501,185 & 5,399,802
