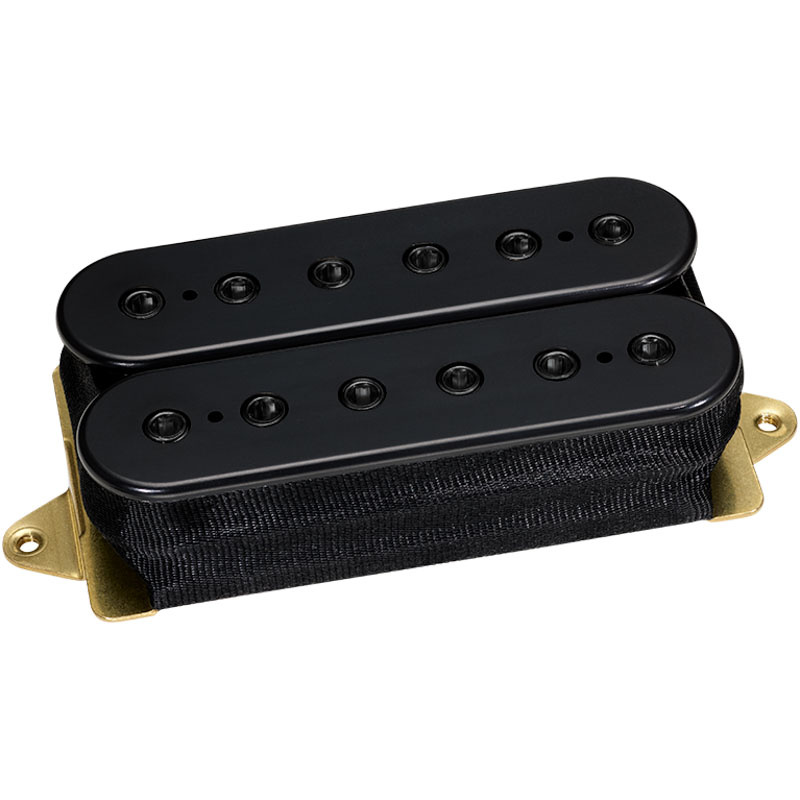

DP200FBK

Steve Morse Model™ Bridge DP200FBK, F-spaced.

Steve Morse has a unique approach to playing guitar, and we designed his pickups to match his technique. Steve commonly switches between pickups mid-solo playing the neck pickup on the high notes and the bridge pickup on the lows so both pickups must be evenly-balanced over the entire fingerboard. The Steve Morse Model™ Bridge delivers high output and a strong attack centered on the mids. It is also designed to give more definition when Steve plays harmonics.

Recommended For Bridge position.

Tech Talk
The Steve Morse Model™ Bridge was DiMarzio's first artist signature pickup. It is almost exactly the opposite of the Neck Model. It has a lot of power and a strong upper mid-range peak which makes the low notes really pop with a hard pick attack. It has relatively low DC resistance for a high-output pickup, so the lows are very tight. They don't sound muddy even with very high gain amps.

Specs. DP200FBK:
Finish: Black. F-spaced.
Pole pieces: Black.
Wiring: 4 Conductor.
Magnet: Ceramic.

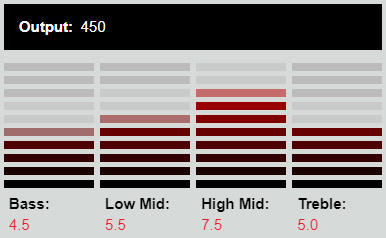

Output mV: 450.
DC Resistance: 9.94 Kohm.
Year of Introduction: 1983.
Patent: n/a.
