DP205FBK

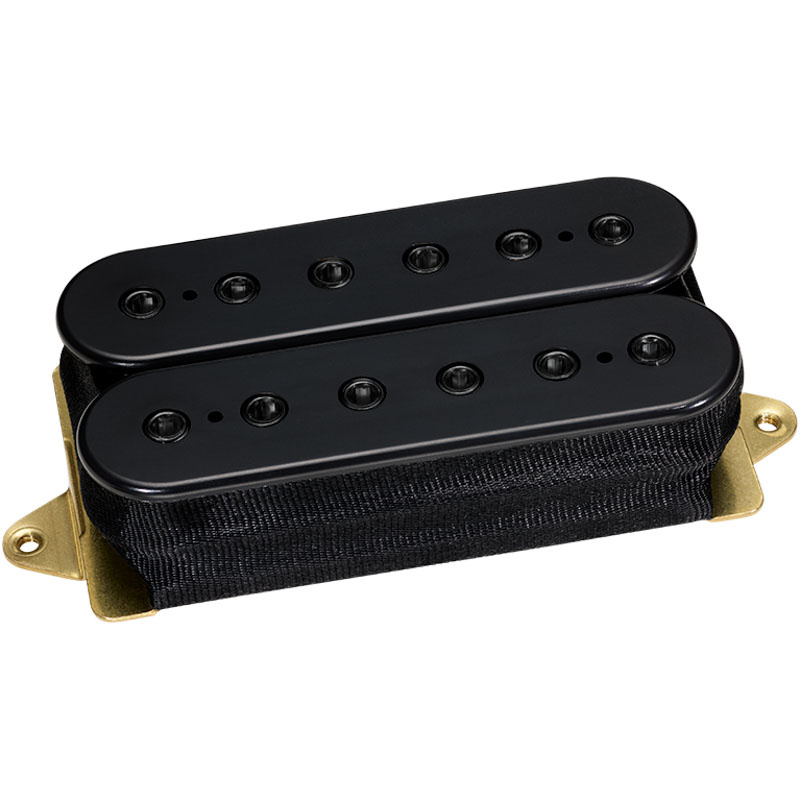

Steve Morse Model™ Neck DP205FBK, F-spaced.

Steve Morse has a unique approach to playing guitar, and we designed his pickups to match his technique. Steve commonly switches between pickups mid-solo x97 playing the neck pickup on the high notes and the bridge pickup on the lows x97 so both pickups must be evenly-balanced over the entire fingerboard. We engineered the Steve Morse Model™ Neck specifically for this purpose, with a dark, smooth sound that is clean and uncompressed.
Recommended For Neck position Tech Talk Steve's neck model has a very specific sound, which is almost exactly the opposite of his bridge pickup in every way x97 it has low output and a warm, very smooth, almost flat attack. The DC resistance spec is very high, but the magnet is not strong, and this combination accounts for the unusual mix of dark tone and low output.

Specs. DP205FBK:
Finish: Black. F-spaced.
Pole pieces: Black.
Wiring: 4 Conductor.
Magnet: Ceramic.

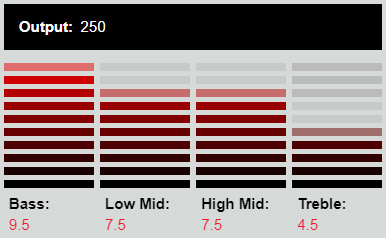

Output mV: 250.
DC Resistance: 21.00 Kohm.
Year of Introduction: 1985.
Patent: n/a.
