DP207

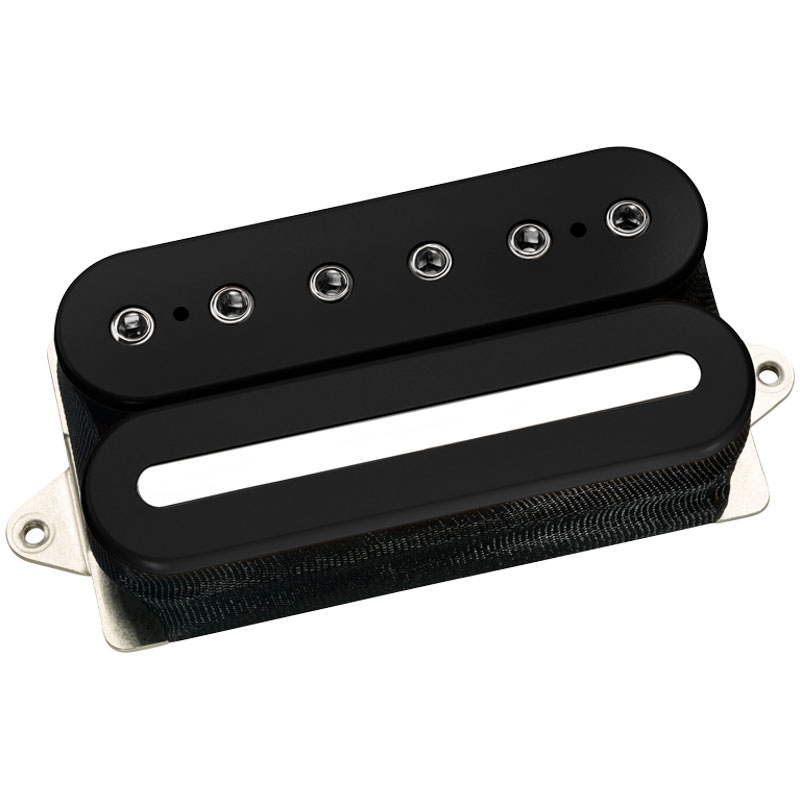

D Sonic™ DP207

Our first heavy humbucker of the 21st century, the D Sonic™ is a high-output bridge humbucker designed for the extended low end and heavy chords that dropped tuning delivers with serious treble response for single-note solos and standard tuning. The D Sonic™ is more than just a one-sound pickup, too. In addition to the standard series humbucking sound, our patented design utilizes 4-conductor wiring to access two different single-coil sounds plus parallel humbucking mode, for three additional sounds that are distinctive and versatile.

Recommended For

Bridge position in solid body guitars.

Tech Talk

Those of you familiar with DiMarzio® history will note the visual resemblance to our old MegaDrive™pickup, but the design is completely different. Installation direction makes a noticeable difference in the sound, particularly with overdriven amps. With the solid bar toward the bridge, the sound is a little brighter and better-defined, and this is the direction we recommend for heavy strings andlow tunings. With the adjustable pole pieces toward the bridge, the sound is warmer and a touch louder, and we think this works best for standard tuning and more solo-oriented playing. Each coil has a unique tonal character, so the two split sounds are different, and parallel humbucking produces a third clean and bright sound.

Specs

Wiring: 4 Conductor
Magnet: Ceramic

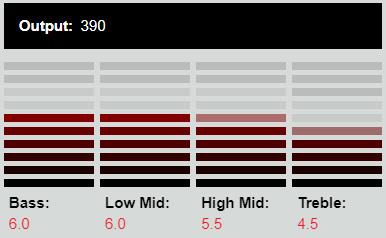

Output mV: 390
DC Resistance: 11.96 Kohm
Year of Introduction: 2003
Patent: 4,501,185 & 5,908,998
