DP216

Mo’ Joe™ DP216

Joe Satriani has used FRED® as his main bridge pickup for years. In 2005, Joe asked us for a hotterand bigger version to replace the FRED® in his new Ibanez® guitars. The new model called the Mo’ Joe™ is all about tone and definition. Its name says it all. It has more power than FRED® but it doesn’t sacrifice clarity or dynamics. Additionally, all the harmonics that made FRED® so good are all there ready to jump out at the touch of a guitar pick. Having more output makes the Mo’ Joe™ a perfectmatch for the PAF Joe™ in the neck position. The combination delivers great versatility and controlfrom rhythms to solos.

Recommended For

Bridge position, solid and semi-hollow body guitars

Tech Talk

The last few years have seen Joe develop a new signature tube amp and start using heavier-gauge strings more often. Both developments emphasized the importance of the Mo’ Joe™ having a high degree ofstring separation without sounding sterile or processed. We got this by slightly increasing the distance between the center frequencies that the coils are tuned to, without increasing DC resistance. The result is a pickup that’s both hotter and more articulate. Mo’ Joe is used by permission of MojoMusical Supply, with whom DiMarzio, Inc. is not affiliated.

Specs

Wiring: 4 Conductor
Magnet: Alnico 5

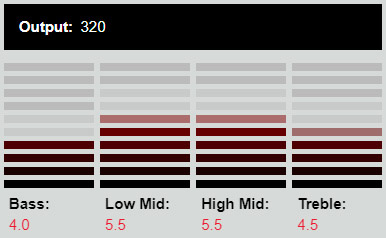

Output mV: 320
DC Resistance: 9.76 Kohm
Year of Introduction: 2006
Patent: 4,501,185
