DP218AW

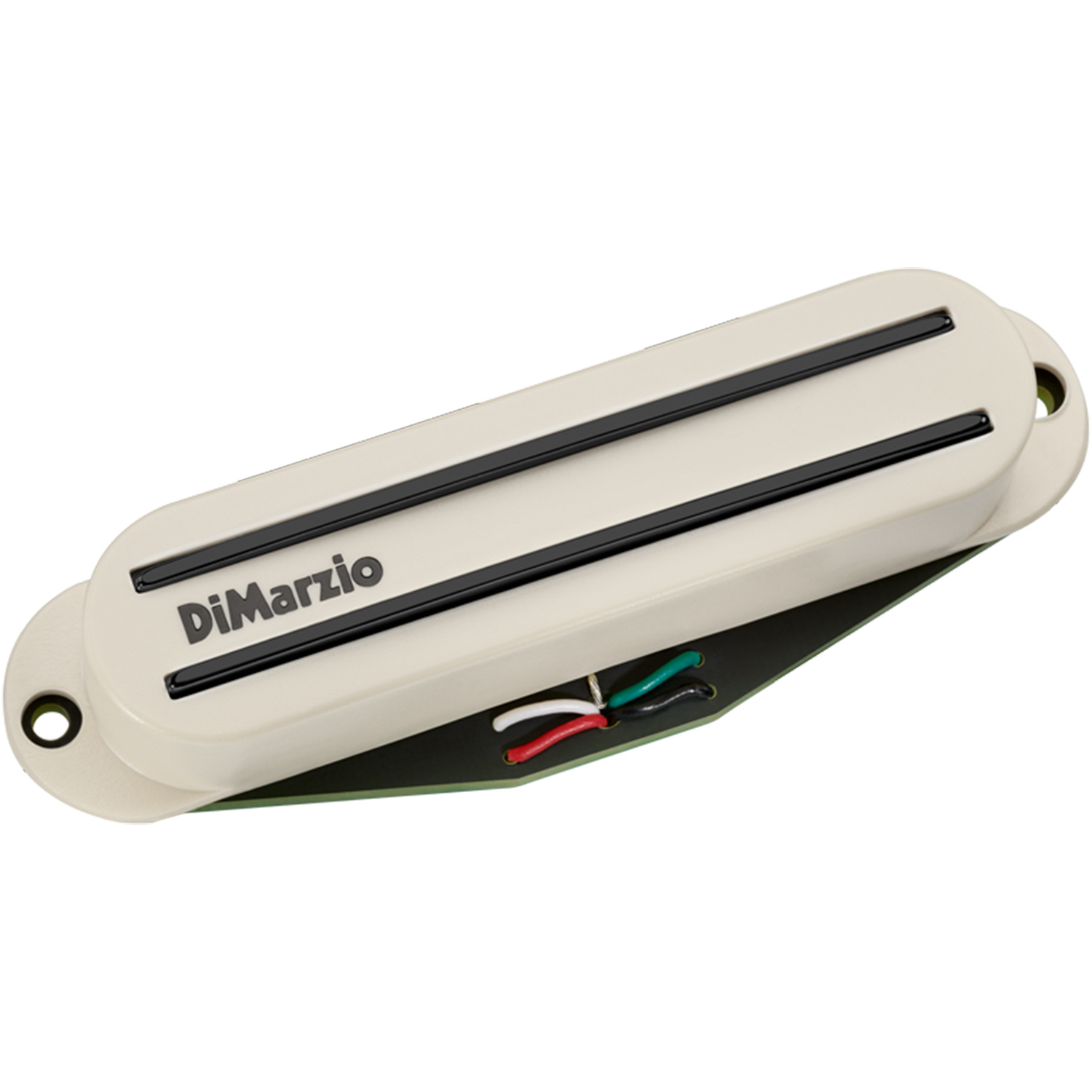

Super Distortion® S DP218AW.
The Super Distortion® S offers the performance of the famous Super Distortion® in a humbucking Strat® bridge direct replacement-size pickup. We've built in the same blend of power and tone that made the original Super Distortion® the worldwide standard for high-output humbuckers. We also tweaked the sound to take into account the fact that the Super Distortion® S will be installed in the classic slanted bridge position. The new model has 4-conductor wiring for parallel humbucking and split-coil modes, and makes a great bridge position combination with the Pro Track™, The Chopper™, and Fast Track 1™.
Recommended for Bridge position in solid body guitars, can also be used in neck and middle.

Tech Talk:
Since the Super Distortion® S will usually be installed in the slanted bridge position of a 25½” scale guitar, we’ve adjusted the specs of the original Super Distortion® humbuckers to compensate. Treble response is smoother, and bass response is tighter. Because of their narrow magnetic fields, dual-blade Strat® replacements are not generally well-known for their splitting ability. However, the Super Distortion® S has a very good single-coil sound in split mode that isn’t brittle or weak.

Specs. DP218W:
Finish: Aged White.
Pole rails: Black.
Quick Connect: Yes.
Wiring: 4 Conductor.
Magnet: Ceramic.

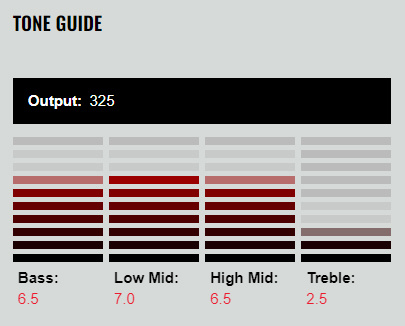

Output mV: 325.
DC Resistance: 13.18 Kohm.
Year of Introduction: 2005.
Patent: n/a.
