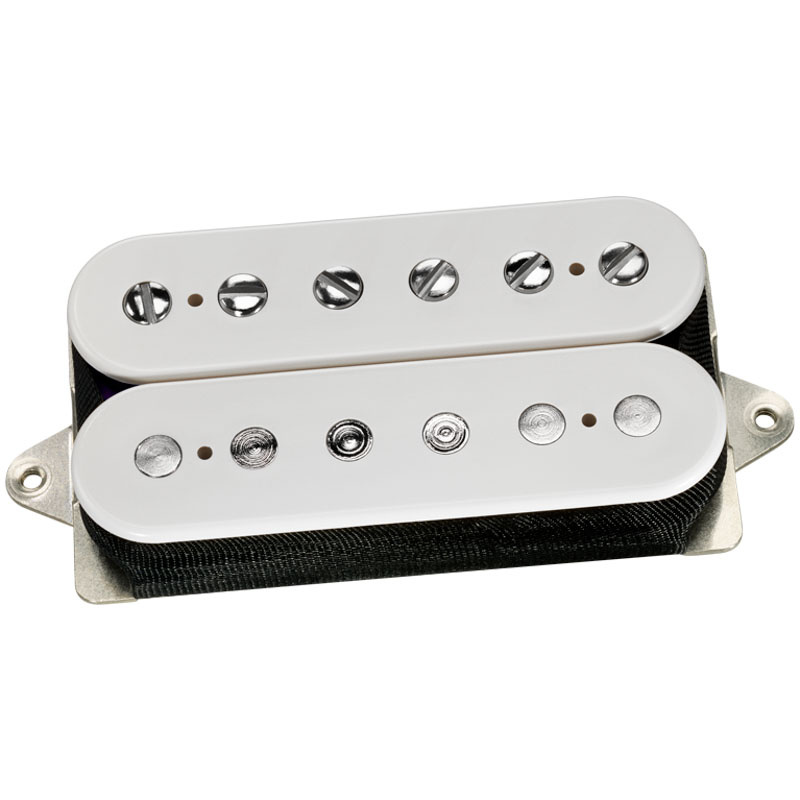

DP224FW

DiMarzio® AT-1? DP224FW, F-spaced..

?A player?s player? is a perfect description for Andy Timmons. He has great touch, phrasing, and tone. Since 2001, he has been playing a DiMarzio® custom bridge humbucker that has only been available on his signature Ibanez® guitar, and it has been his first-line pickup ever since. The outstanding characteristics of the DiMarzio AT-1? are balance, warmth, and clarity. It achieves this blend with the same patented technology as the PAF® 36th Anniversary, but the sound is hotter and the focus is rock.

Recommended For Bridge position Tech Talk The DiMarzio AT-1? was originally designed for a 25? scale, mahogany-body guitar, but it adapts very well to other instruments. It has enough bass and mids to warm up brighter guitars, and enough clarity for 24? scale set-necks as well.

Specs. DP224FW:
Finish: White. F-spaced.
Pole pieces: Nickel.
Wiring: 4 Conductor.
Magnet: Alnico 5.

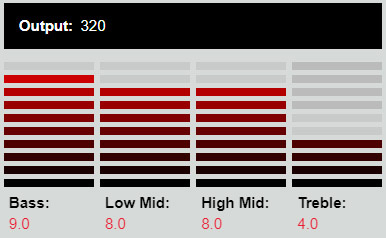

Output mV: 320.
DC Resistance: 16.50 Kohm.
Year of Introduction: 2001.
Patent: 5,399,802 & 5,908,998.
