DP260CR

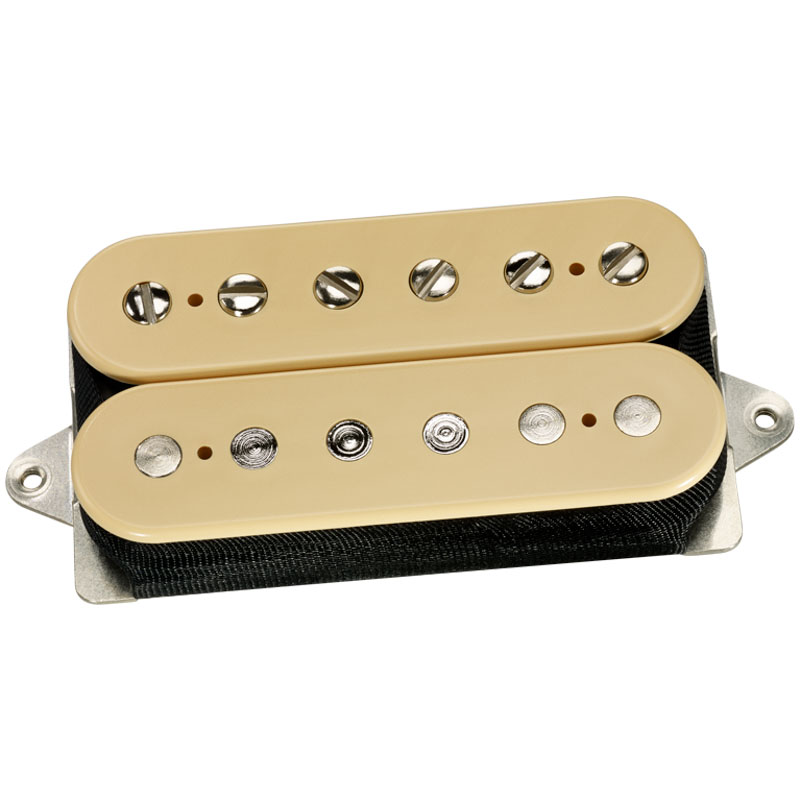

PAF® Master Neck DP260CR.

One variation that’s highly sought after by vintage PAF® players is a pickup that is quiet, bright, and very dynamic. The PAF® Master Neck Model is truly special. It has a great balance of full, richness with a throaty tone but it’s not too fat and notes still come through nice and clear, with beautiful smooth and creamy highs. We gave it just the right amount of windings to allow the pickup to sing, sustain and still be articulate. The PAF® Master Neck Model: vintage just got better.

Recommended For Neck. Can also be used in bridge position.

Tech Talk:
We’ve done the research and seen all the mythology around pickups made with NOS wire, unoriented magnets, butyrate bobbins, vintage alloys, unbalanced coils, et al. We prefer to focus on results rather than on replicas. The PAF® Master Neck Model uses several of our patented ideas to create a pickup that pays tribute to the original sound without imitating it. Instead of “accidentally” unbalancing the coils, we’ve tuned them to different frequencies to get the same effect without compromising hum-cancellation.

Specs. DP260CR:
Finish: Cream.
Polescrews: Nickel.
Wiring: 4 Conductor.
Magnet: Alnico 5.

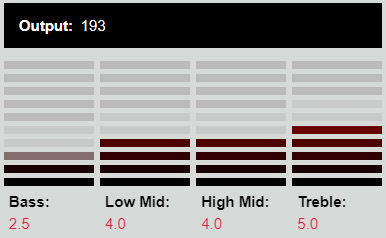

Output mV: 193.
DC Resistance: 7.37 Kohm.
Year of Introduction: 2014.
Patent: 5,399,802 & 5,908,998.
