DP261CR

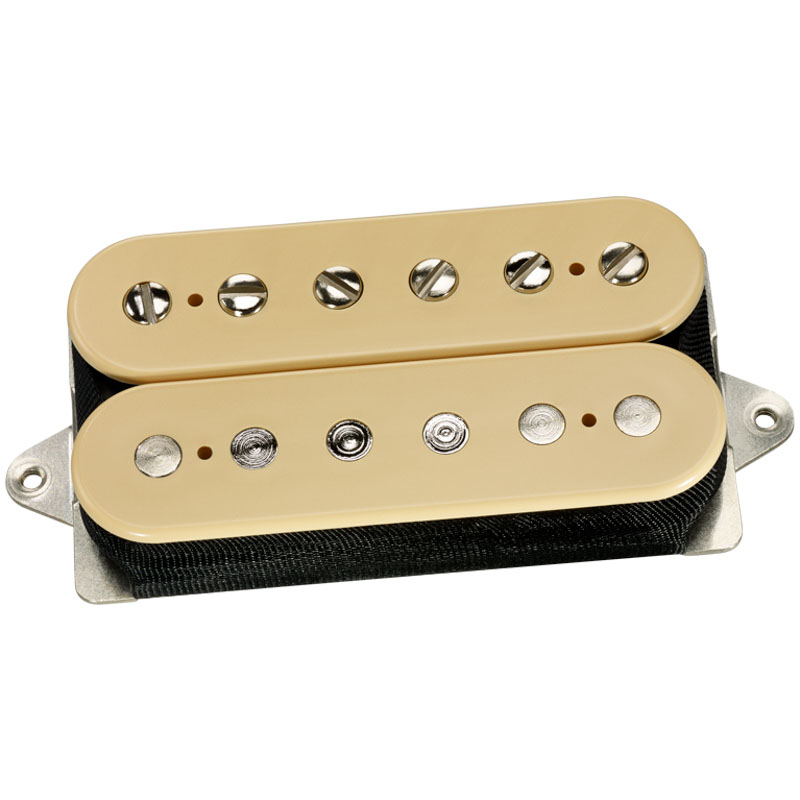

PAFxAE Master Bridge DP261CR.

One variation that’s highly sought after by vintage PAFxAE players is a pickup that is quiet, bright, and very dynamic. The PAFxAE Master Bridge Model has all that combined with real rock and roll character. It reacts to playing, and sounds good when playing more than one note at the same time. Picked hard, it has a beautiful, snarly, thick, rockin’ tone. The PAFxAE Master Bridge Model: vintage just got better.

Recommended For Bridge. Can also be used in neck position.

Tech Talk:
We chose Alnico 4 for the PAFxAE Master Bridge Model because of its high iron content and energy coefficient. AL4 lends more body and attack to the sound than you might expect from a pickup with relatively low output voltage and DC resistance specs. The PAFxAE Master Bridge Model is not a loud pickup, but it feels hot because of its fast and aggressive response to pick attack.

Specs. DP261CR.
Finish: Cream.
Polescrews: Nickel.
Wiring: 4 Conductor.
Magnet: Alnico 4.

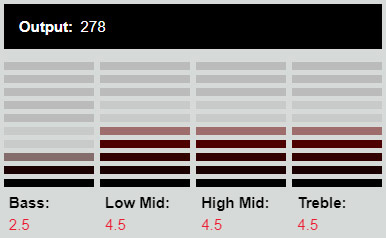

Output mV: 278.
DC Resistance: 7.69 Kohm.
Year of Introduction: 2014.
Patent: 5,908,998.
