DP274Z

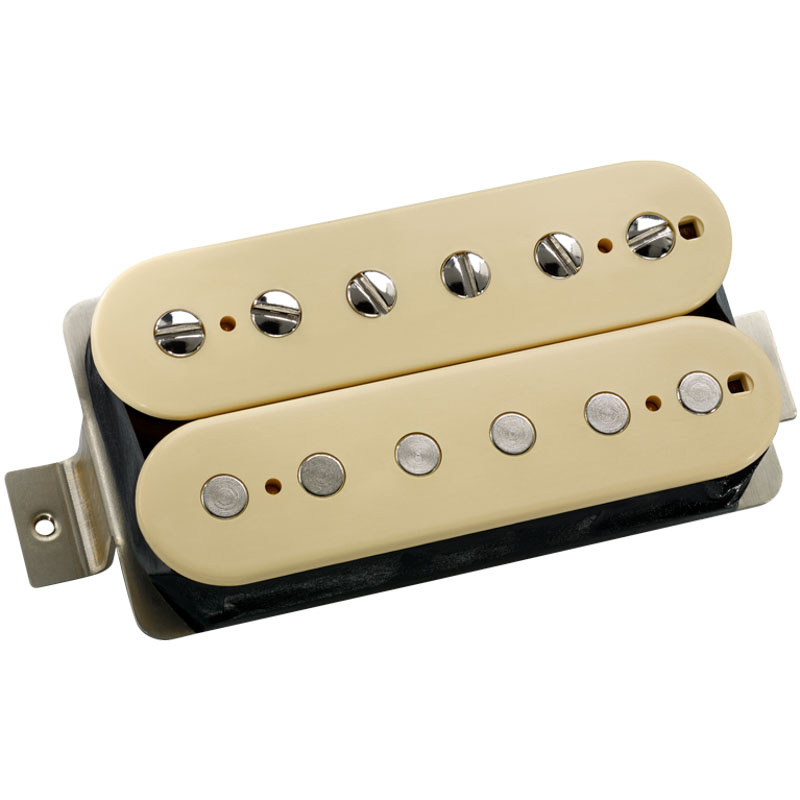

DP274Z. Pickup Humbucker PAF59®/Neck Relic White.
(Tid. DP274CR)

These days, it seems as if everyone’s looking for the legendary sound and dynamics of the original “Patent Applied For” pickups. Utilizing Larry DiMarzio’s 1959 Cherry Sunburst Les Paul® for reference,
DiMarzio used the same materials as 1959, gifted ears, and decades of winding experience to create the new PAF® 59 pickups.
Larry says the PAF® 59 Neck and Bridge models were built following an “old family recipe.” We started with a 2-½-inch degaussed Alnico 5 magnet. The 42 AWG enamel wire coils are un-dipped and scatter wound.
They’re tuned to capture the guitar’s voice and dynamics without coloring it.
The PAF® 59 Neck and Bridge models feature Double Cream™ butyrate bobbins on our long-leg nickel/silver base plate just like the originals.
All materials are made in the U.S.A. to the tolerances of the best of the 1959 pickups.
The PAF® 59 Neck and Bridge models have the open dynamics, bright attack, smooth midrange, and rich bottom end, along with the creamy distortion of the original “Patent Applied For” pickups.
The PAF® 59 Neck model is very responsive, and harmonics leap out. Combined with the PAF® 59 Bridge model, it’s got that smooth, overdriven, classic arena rock sound.

Recommended For Neck. Can also be used in the bridge position.
Tech Talk
Combine with the PAF® 59 Bridge for the full vintage experience.

DP274Z.
Finish: Relic White.
Polescrews: Nickel.
Wiring: 1 Conductor.
Magnet: Alnico 5.

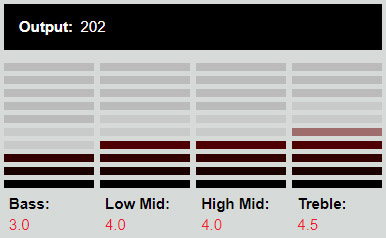

Output mV: 202.
DC Resistance: 8.2 Kohm.
Year of Introduction: 2017.
Patent: n/a.
