DP318BK

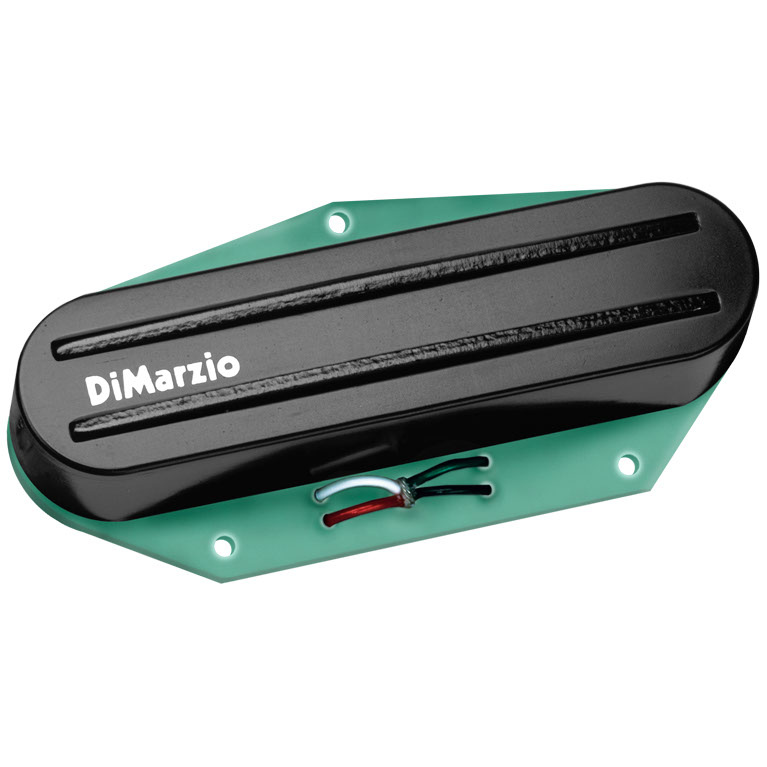

DP318BK. Super DistortionxAE T Bridge.

The Super DistortionxAE T offers the performance of the famous Super DistortionxAE in humbucking TelexAE bridge direct replacement-size pickups. We’ve built in the same blend of power and tone that made the original Super DistortionxAE the worldwide standard for high-output humbuckers. We also tweaked the sound to take into account the fact that the Super DistortionxAE T will be installed in the classic slanted bridge position. Like the full-size version, the Super DistortionxAE T has 4-conductor wiring for parallel humbucking and split-coil modes.

Recommended For Bridge position in solid body guitars.

Tech Talk
Since the Super DistortionxAE T will be installed in the slanted bridge position of a 25xBDx94 scale guitar, we’ve adjusted the specs of the original Super DistortionxAE humbuckers to compensate. Treble response is smoother, and bass response is tighter. Because of their narrow magnetic fields, dual-blade TelexAE replacements are not generally well-known for their splitting ability. However, the Super DistortionxAE S has a very good single-coil sound in split mode that isn’t brittle or weak

Specs. DP318BK:
Finish: Black.
Pole rails: Black.
Quick Connect: Yes.
Wiring: 4 Conductor.
Magnet: Ceramic.

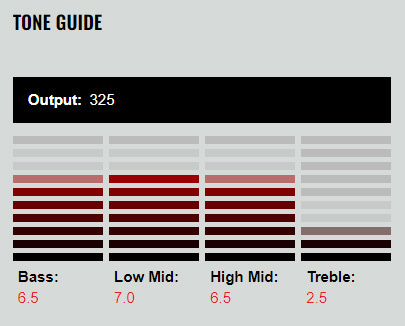

Output mV: 325.
DC Resistance: 13.18 Kohm.
Year of Introduction: 2005.
Patent: n/a.

Read more
