DP706BK

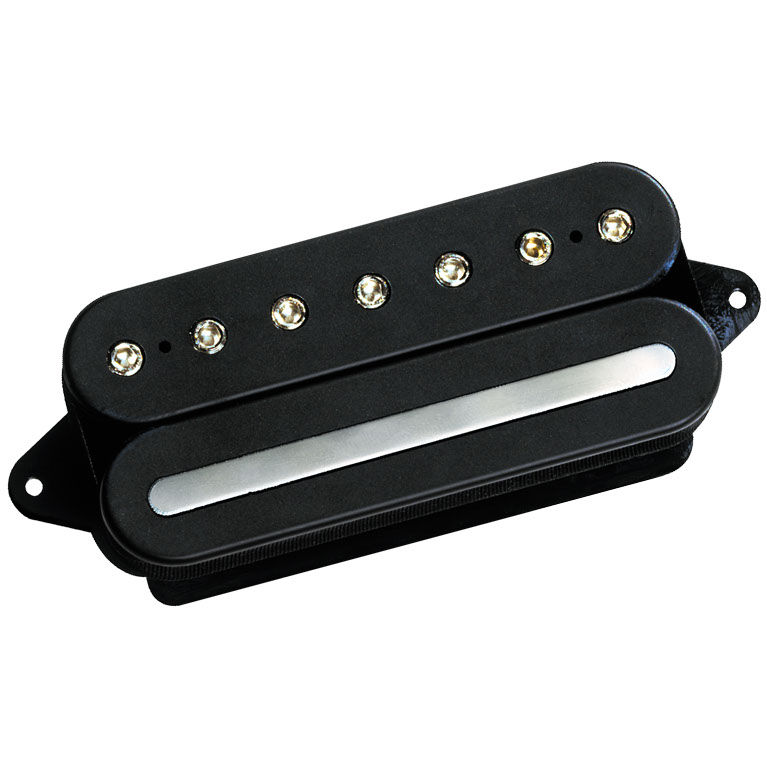

D Sonic 7™ DP706BK.

Clarity, warm tone, and high output are the qualities that define the D Sonic™. John Petrucci agrees. He's had a lot of experience playing theD Sonic™ on his 6-string guitars, so when he wanted the same sound from his 7-string we couldn't say no. The D Sonic™combination of clean and heavy that works so well with high gain amps for both chords and soloing makes a great choice for a 7-string bridge pickup. The high strings sing and the low strings growl.

Recommended For Bridge position.

Tech Talk
As with the 6-string D Sonic™, the character of the sound can be altered by reversing the installation direction. This can be particularly important because of the effect it will have on the low x93Bx94 string. With the solid bar pole piece towards the neck, the low x93Bx94 will be fat and heavy. With the bar towards the bridge, the sound will be tighter with more attack. The solid bar coil is also warmer sounding, so two different single-coil sounds are available with coil-splitting.

Specs. DP706BK:
Finish: Black.
Pole pieces: Nickel.
Wiring: 4 Conductor.
Magnet: Ceramic.

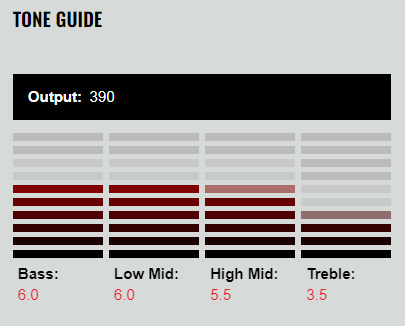

Output mV: 390.
DC Resistance: 12.03 Kohm.
Year of Introduction: 2006.
Patent: 4,501,185 & 5,908,998.
