DP757BK

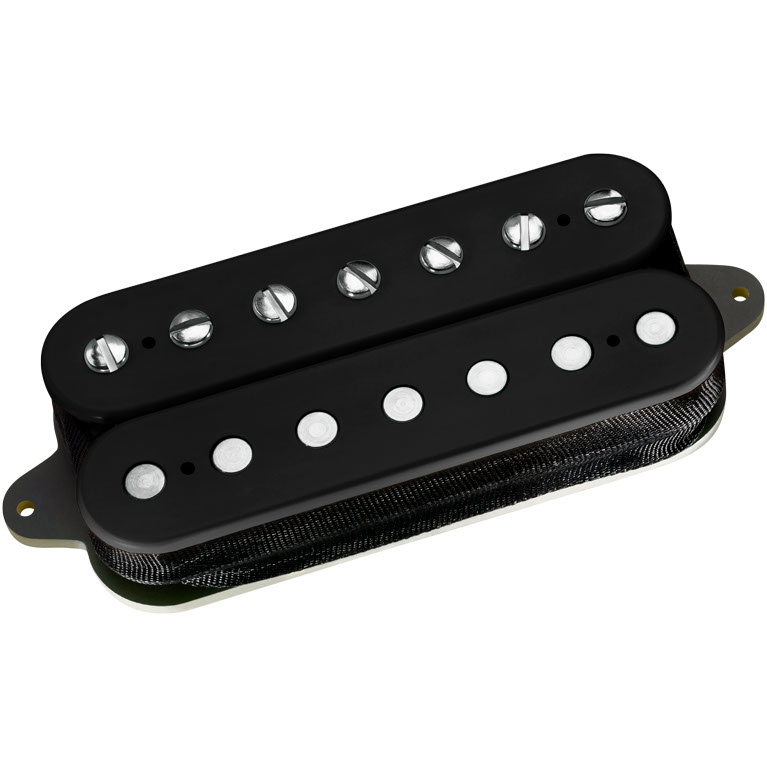

Illuminator 7™ Bridge DP757BK.

Designed for John Petrucci’s Music Man JP13™ guitar, the new Illuminator 7™ Neck and Bridge Models are the next generation in John’s signature pickups with DiMarzio. John says he looks for versatility in his pickups so that he’s able to span a multitude of different sounds within one guitar, going from massive overdrive, very tight, rhythmical and aggressive to x93more expressive, dynamic and very liquidx94 when he plays solos. They’re a bit bold possessing the clarity and presence that a 7-string pickup needs, balancing vintage and modern qualities without sacrificing the best of either.

Recommended For Bridge position.

Tech Talk
In keeping with John’s desire to increase the difference between neck and bridge pickup sounds, the Illuminator 7™ Bridge Model does three things: it opens up the mids, bumps the highs up a notch, and tightens the lows. The open midrange allows overdriven sounds to be powerful without harshness, while the tighter bass response avoids muddy lows.

Specs. DP757BK:
Finish: Black.
Pole pieces: Nickel.
Wiring: 4 Conductor.
Magnet: Ceramic.

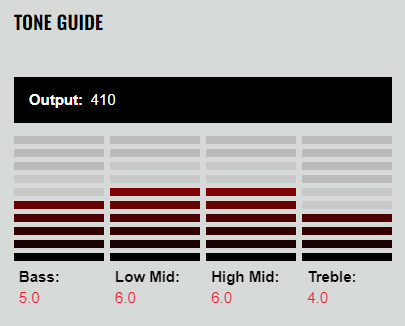

Output mV: 410.
DC Resistance: 11.17 Kohm.
Year of Introduction: 2013.
Patent: n/a.
