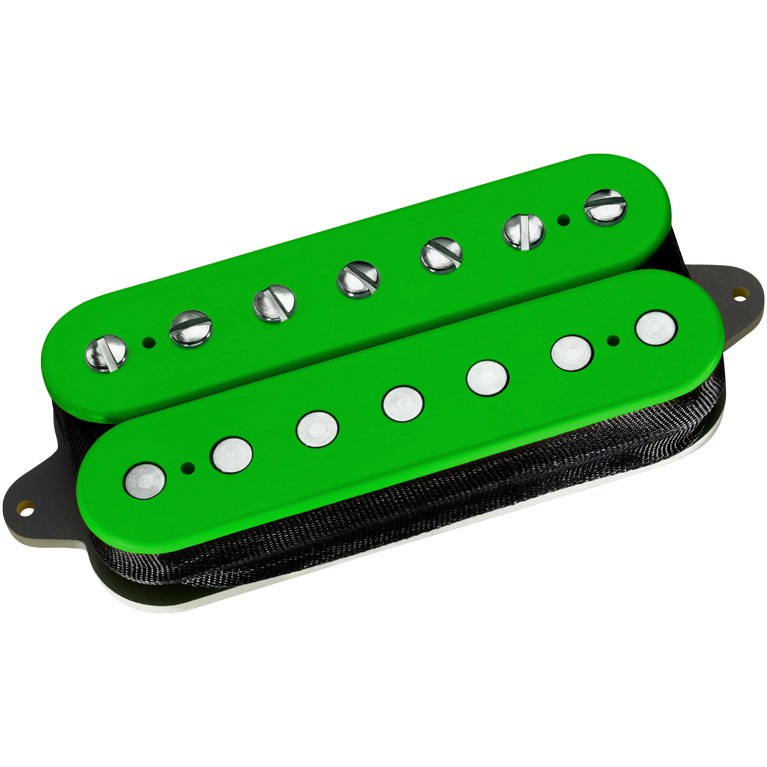

DP759GN

PAFxAE 7 DP759GN.

As the popularity of 7-string guitars has grown, so has the demand for a clean-sounding, lower-output pickup that performs like the classic humbuckers of the late 50s. Far from being a modification to a 6-string design, the PAFxAE 7 is specifically designed for 7-string guitars, and incorporates some of the same technology employed in the Virtual VintagexAE pickup series to produce a sound that’s both clean and open on the low notes and warm and rounded on the highs. The PAFxAE 7 comes with 4-conductor cable.

Recommended For All positions.

Tech Talk
It's a well-known fact that humbuckers from the 1950s employed Alnico 2, 3, or 5. We found that by using a ceramic magnet in the PAF 7™ we could achieve the same low magnet-pull as Alnico 2 or 3, with the power of Alnico 5. The ceramic magnet keeps the sound of the low strings bright and clean, and Virtual VintagexAE technology inside the coils is responsible for warm high notes and the playing feel of 50s humbuckers.

Specs. DP759GN:
Finish: Green.
Wiring: 4 Conductor.
Magnet: Ceramic.

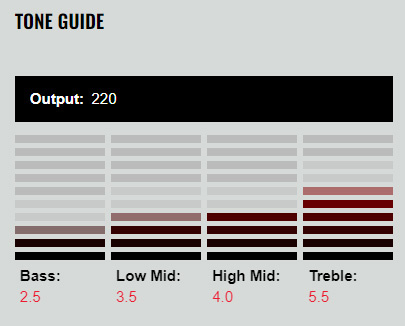

Output mV: 220.
DC Resistance: 7.23 Kohm.
Year of Introduction: 2000.
Patent: 5,908,998.
