DP186BK

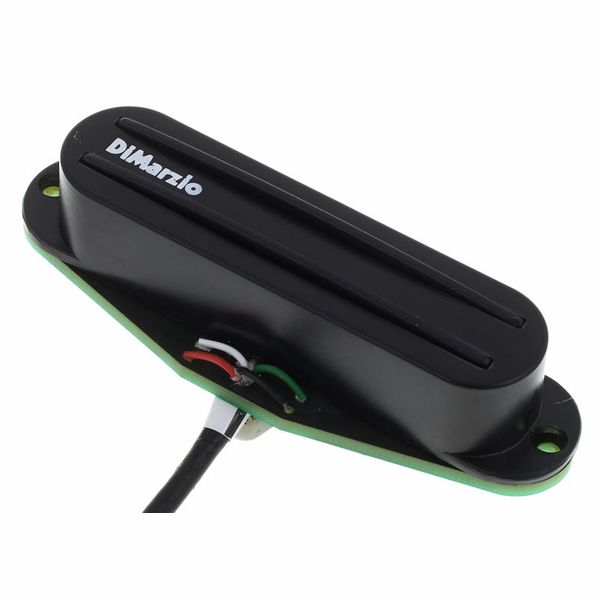

DP186BK. The Cruiser® Neck.

If you’re a serious traditional Strat® player, you probably won’t want to know about pickups with side-by-side coils. But if you’re the player who’s up for something more modern with no 60-cycle hum, string drop-outs or sustain-killing magnet pull, we designed The Cruiser® for you. Harmonic overtones are right where you expect them to be from a “true” single-coil, and the mid-range is open and vocal-sounding. It’s hotter than the traditional single-coil, and the bass strings have a bit more chunk; this is an excellent pickup to combine with medium-output humbuckers, and it maintains its tonal identity with high-gain amps and multiple effects.

Recommended For Neck position with DP187, or neck and middle with higher output bridge pickup or full-size humbucker.

Tech Talk
The obvious question about The Cruiser® is “How does it compare to a single-coil sound?” Our feeling is that the unwound strings (“E”, “B”, and “G”) are very close, and the wound strings (“D”, “A”, and low “E”) are a little fatter-sounding than a true single-coil. This is really effective for getting open-sounding chords, because high and low strings sound more spread out from each other. Having a total magnet pull that's about 40% less than standard single-coils also means The Cruiser® can be adjusted much closer to the strings for more power than stock pickups can achieve.

Specs. DP186BK:
Finish: Black.
Pole rails: Black.
Quick Connect: Yes.
Wiring: 4 Conductor.
Magnet: Ceramic.
Output mV: 140.
DC Resistance: 3.13 Kohm.
Year of Introduction: 1994.
Patent: 4,501,185.

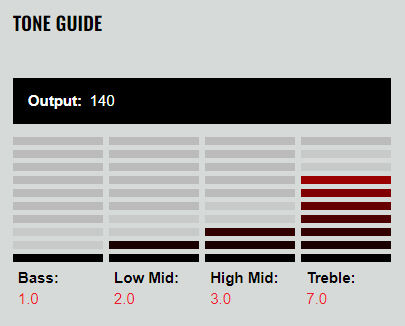

Tone guide:
Bass: 1.0
Low Mid. 2.0
High Mid: 3.0
Treble: 7.0
